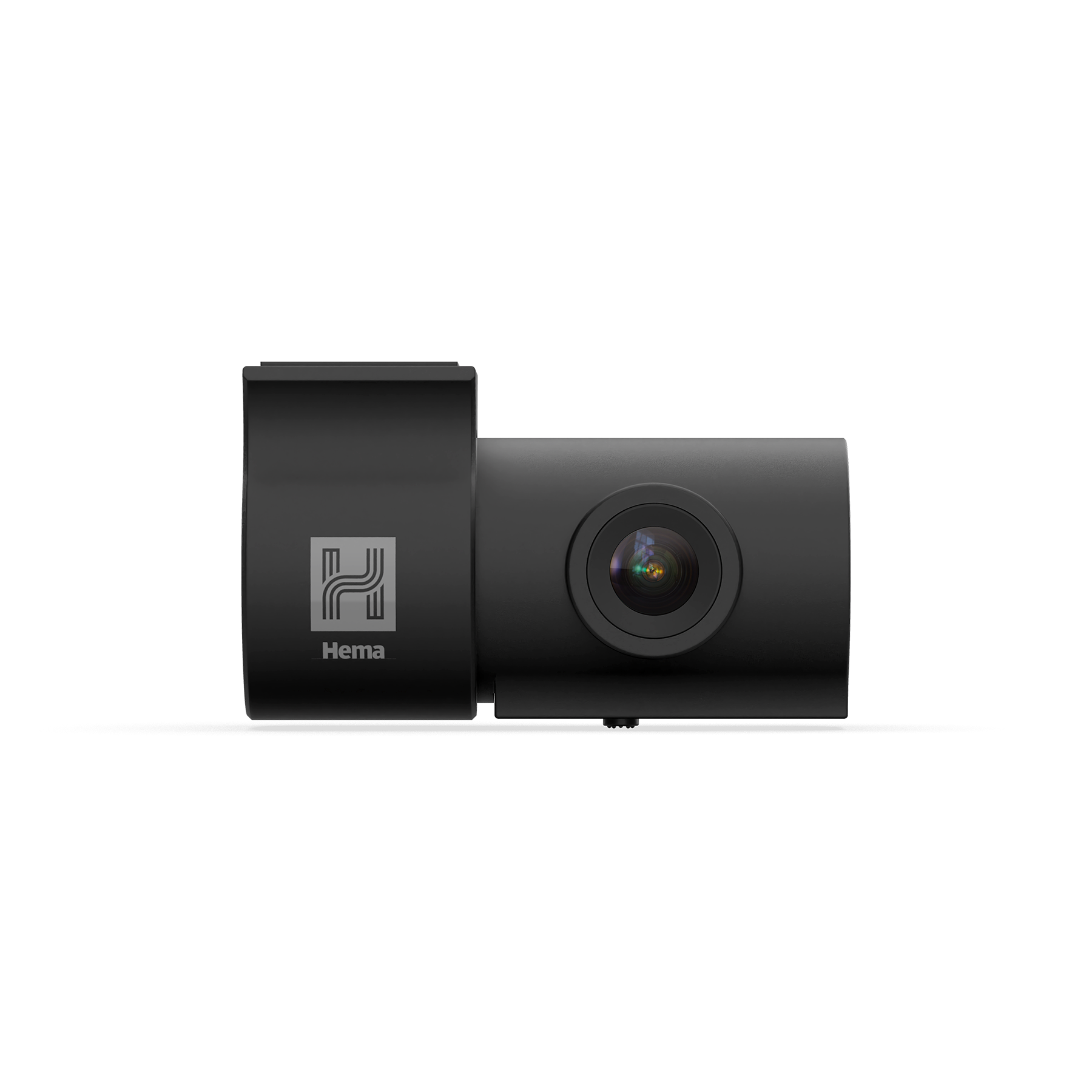

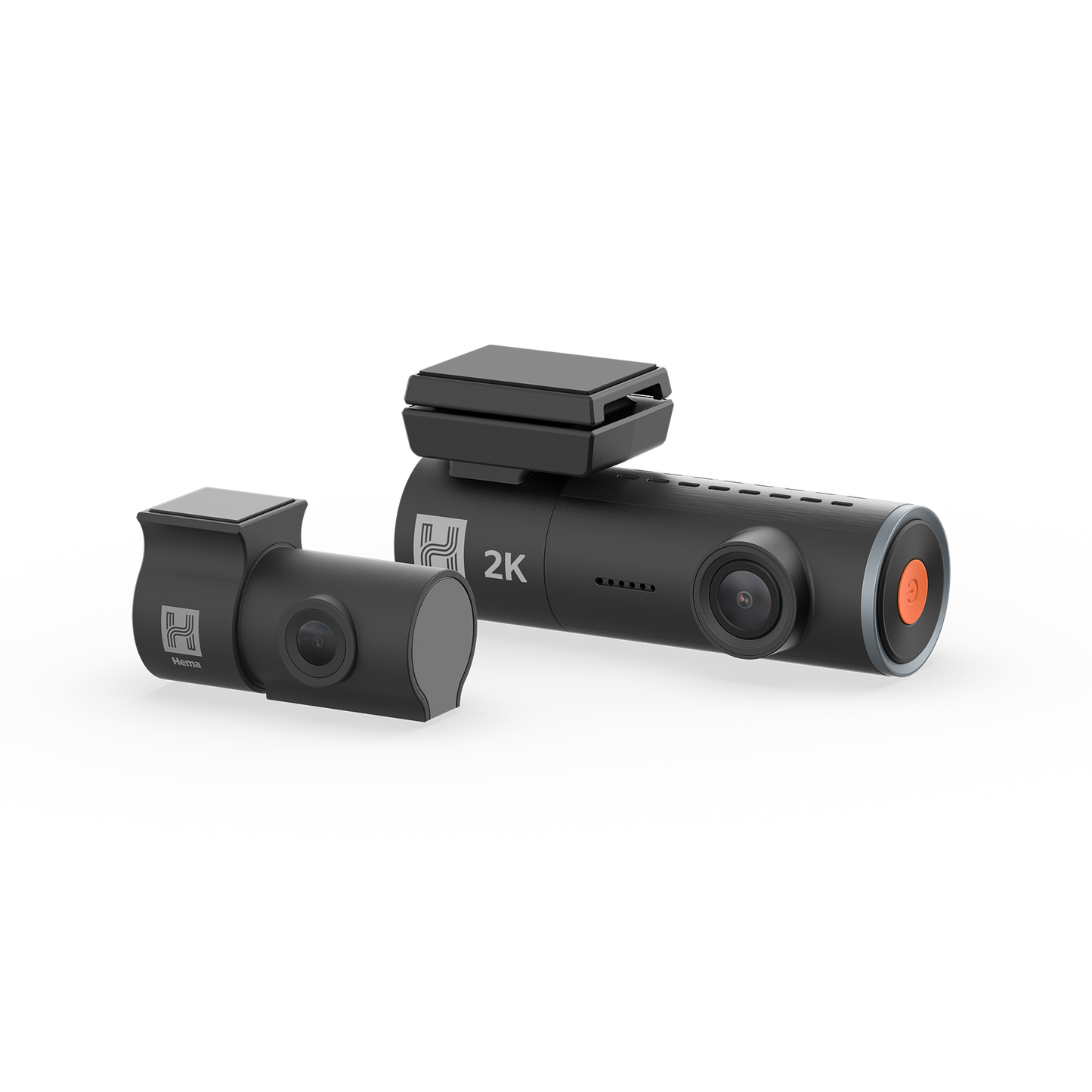

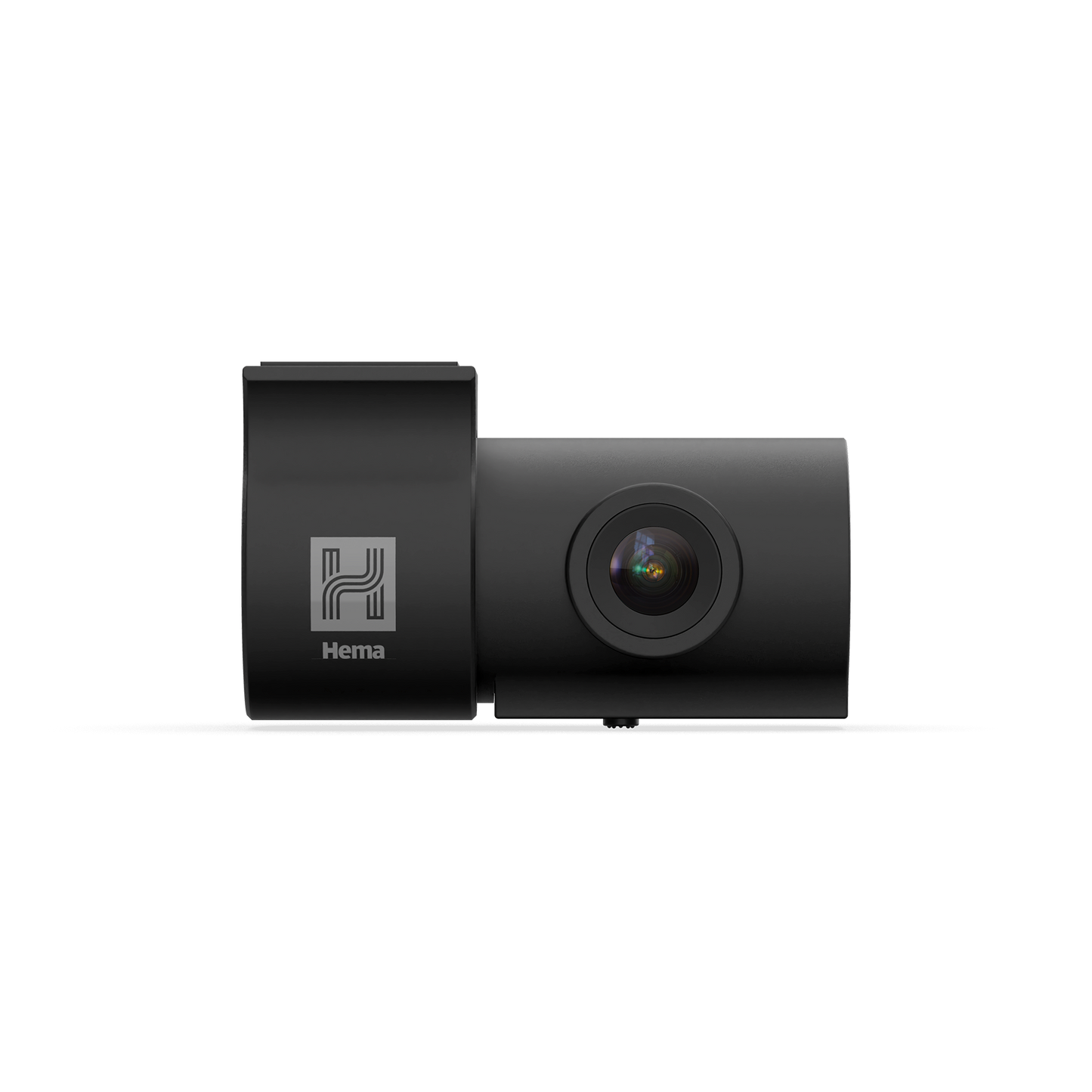

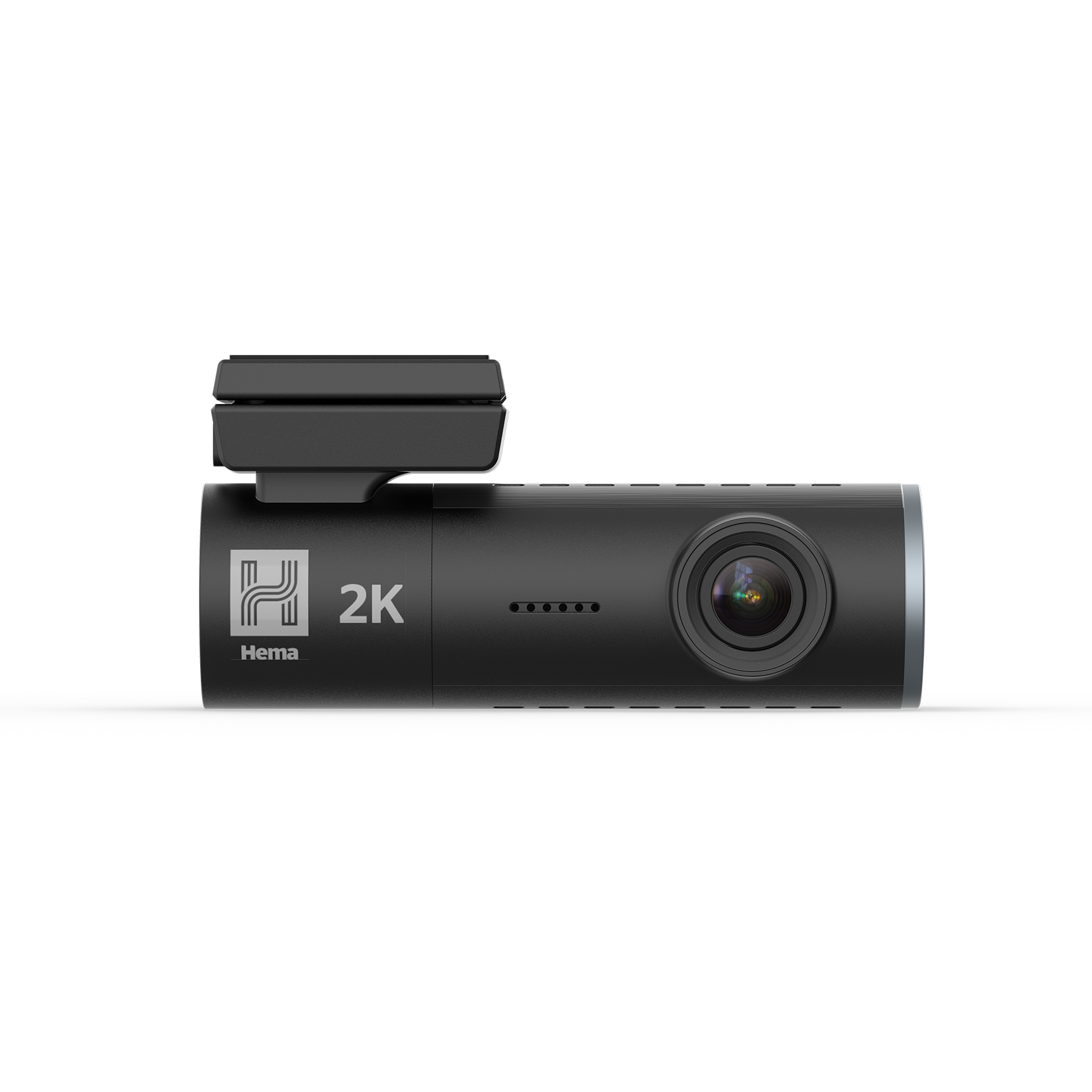

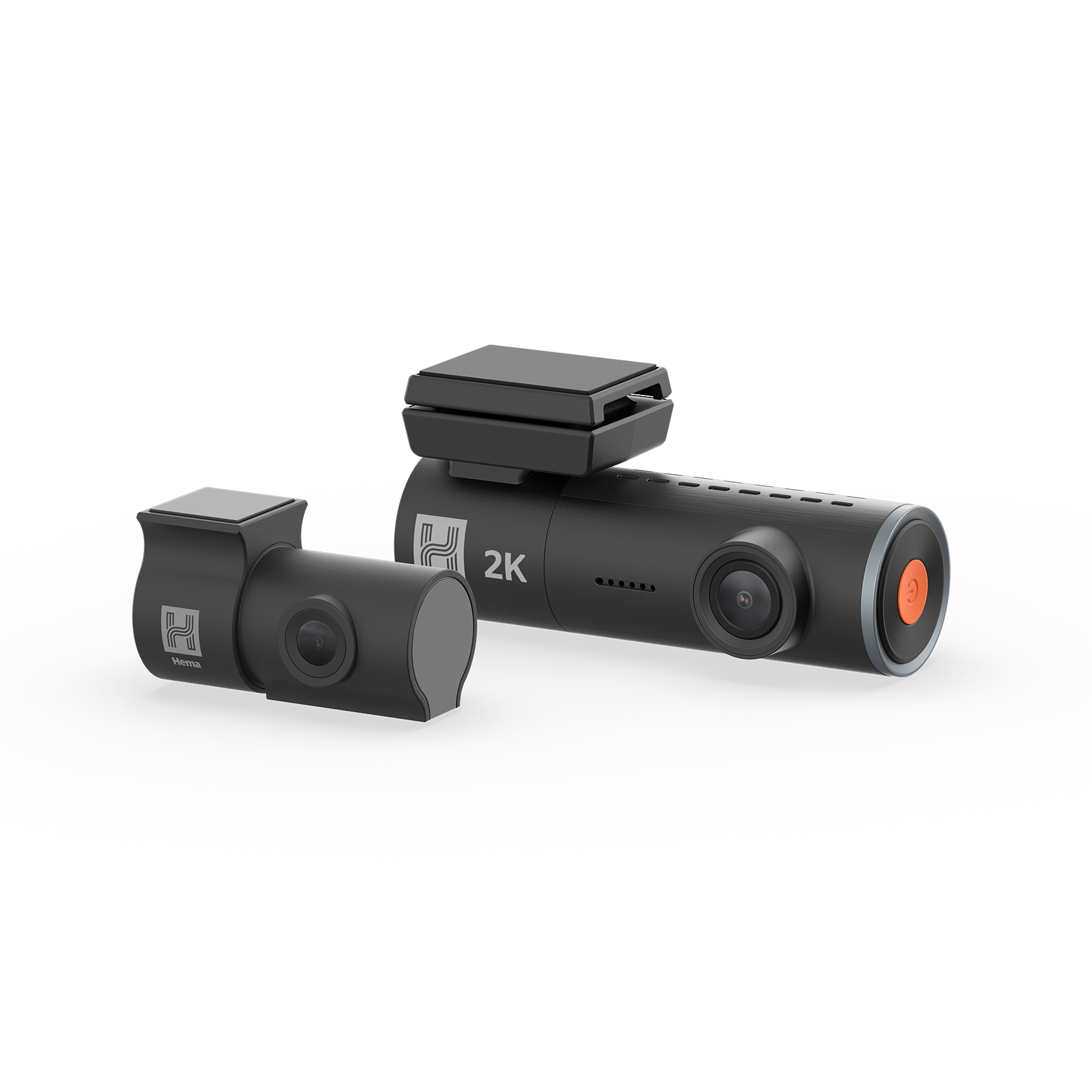

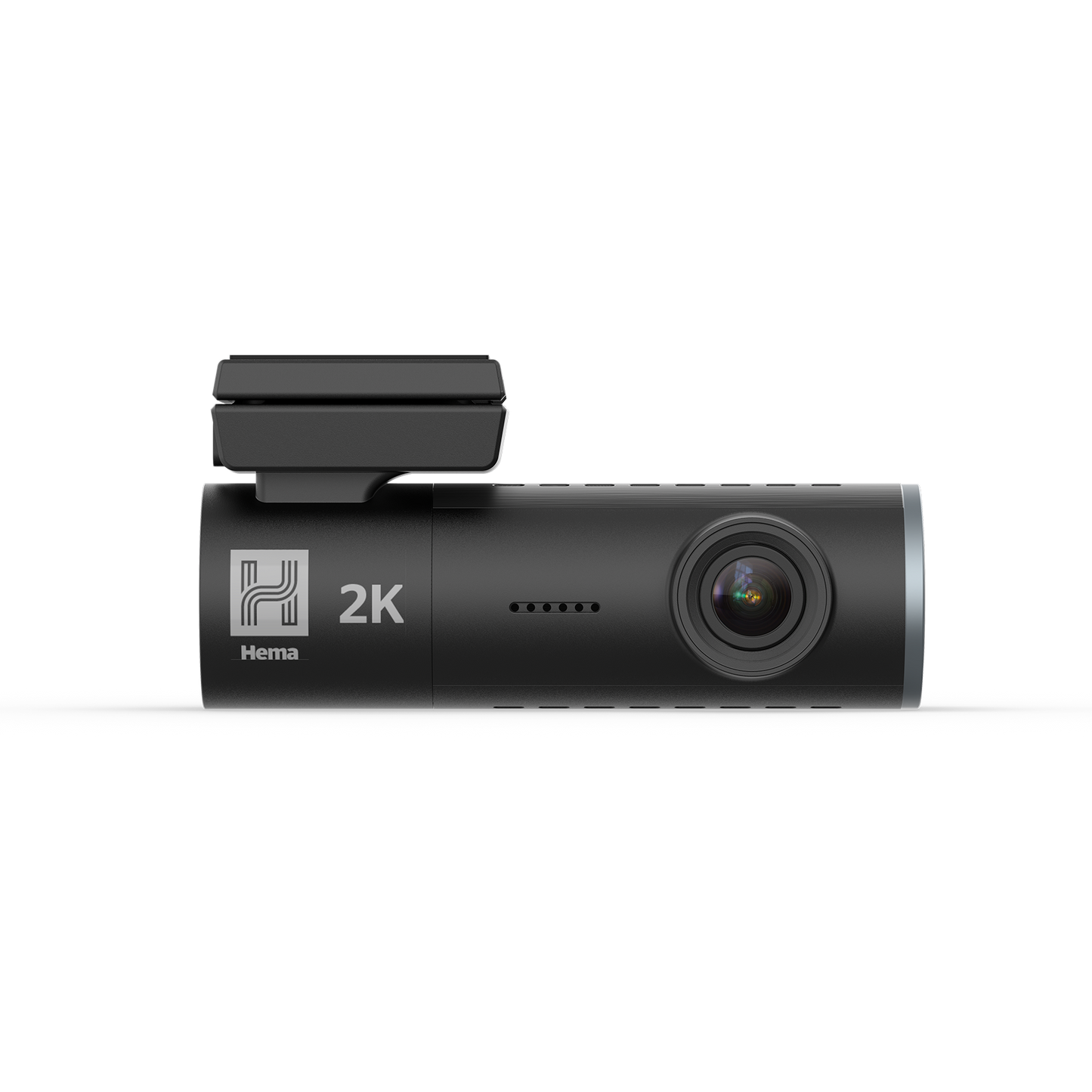

2K QHD Discreet Barrel Dash Camera and 1080p Rear Camera With Built-in GPS and Wi-Fi
-
2K QHD Discreet Barrel Dash Camera and 1080p Rear Camera With Built-in GPS and Wi-Fi2K QHD Discreet Barrel Dash Camera and 1080p Rear Camera With Built-in GPS and Wi-Fi
-
2K QHD Discreet Barrel Dash Camera and 1080p Rear Camera With Built-in GPS and Wi-Fi

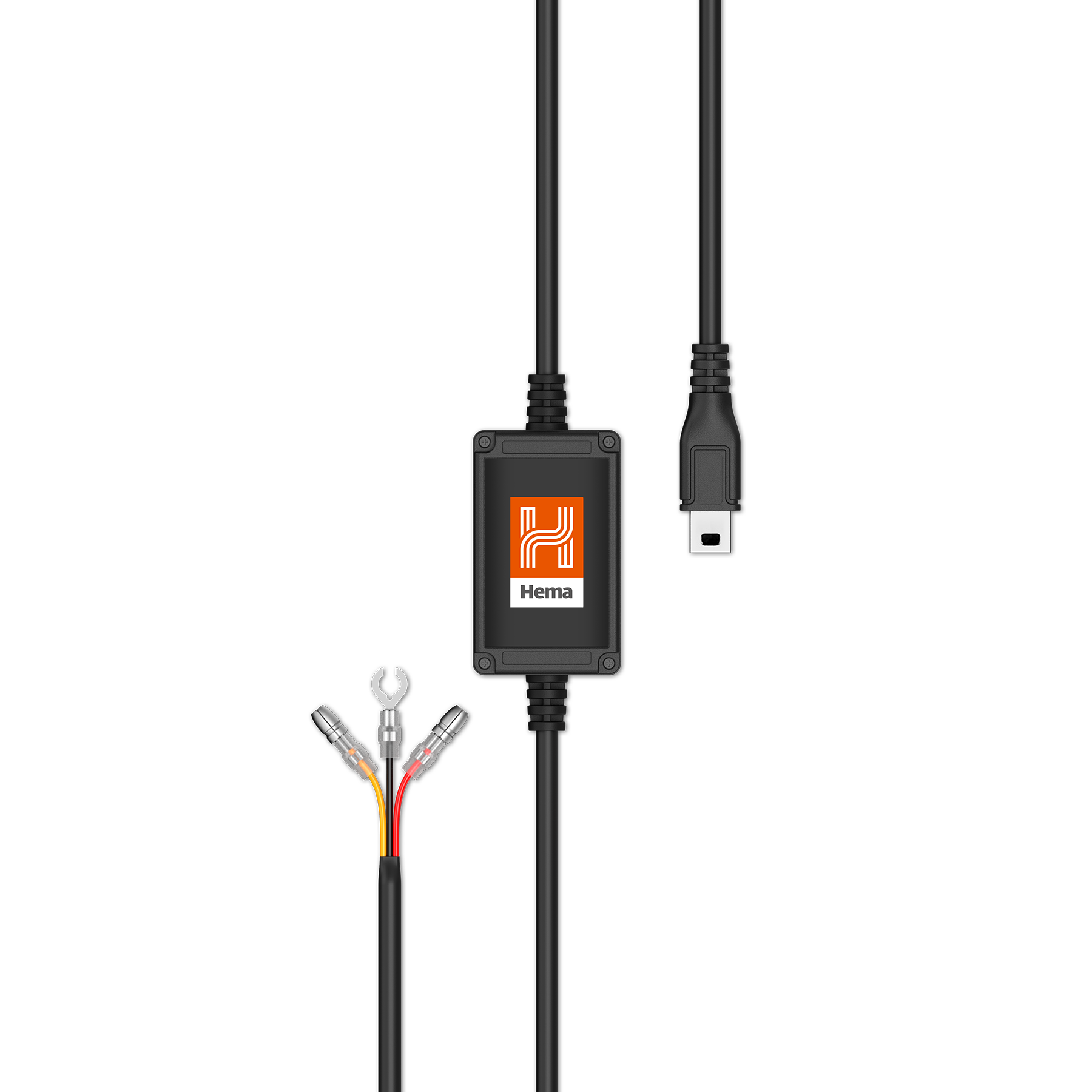

Red Input Indicator
Bullet Plug OD4MM
Black Input Connector
Round ring terminal, nickel plated, OD10MM ID6MM L20MM

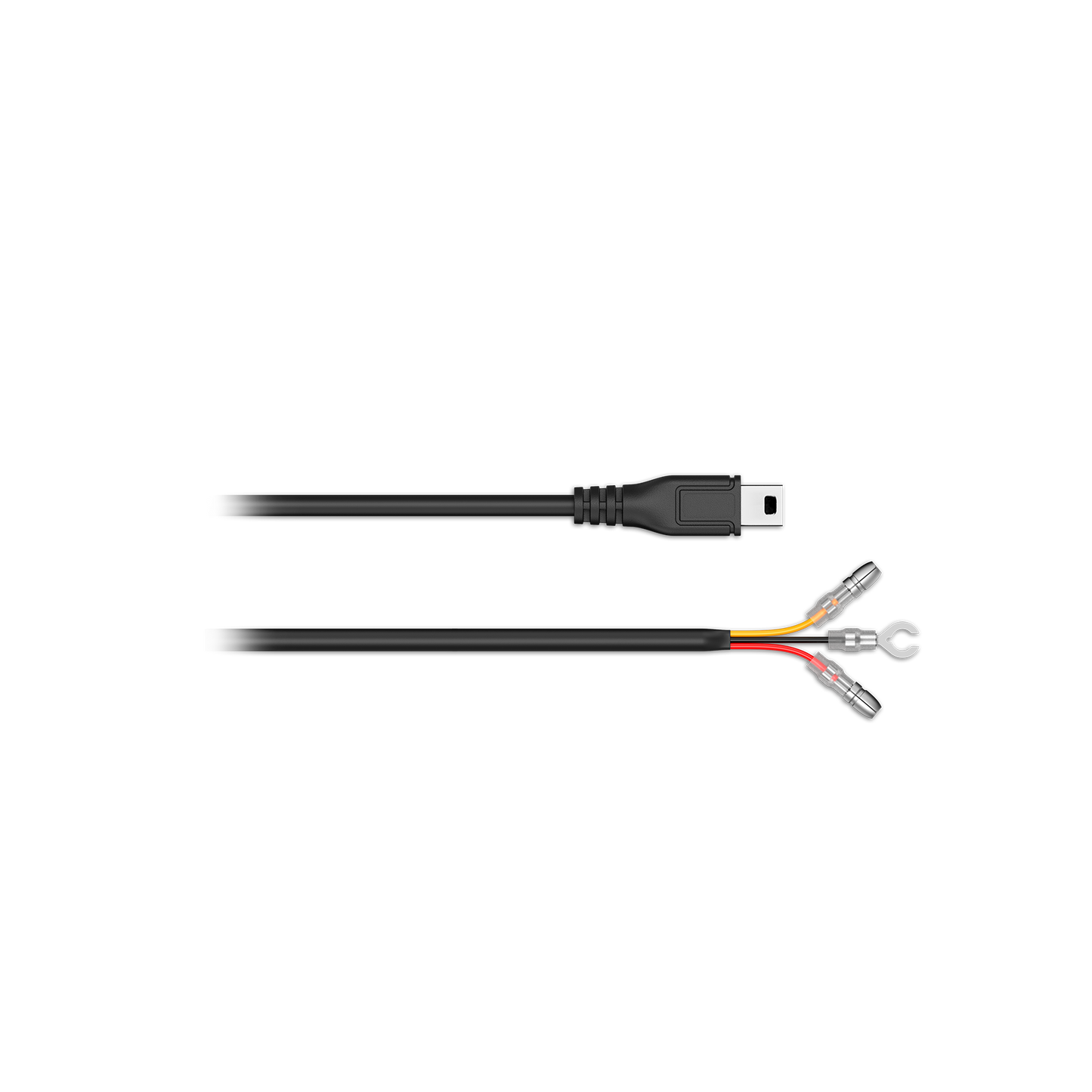

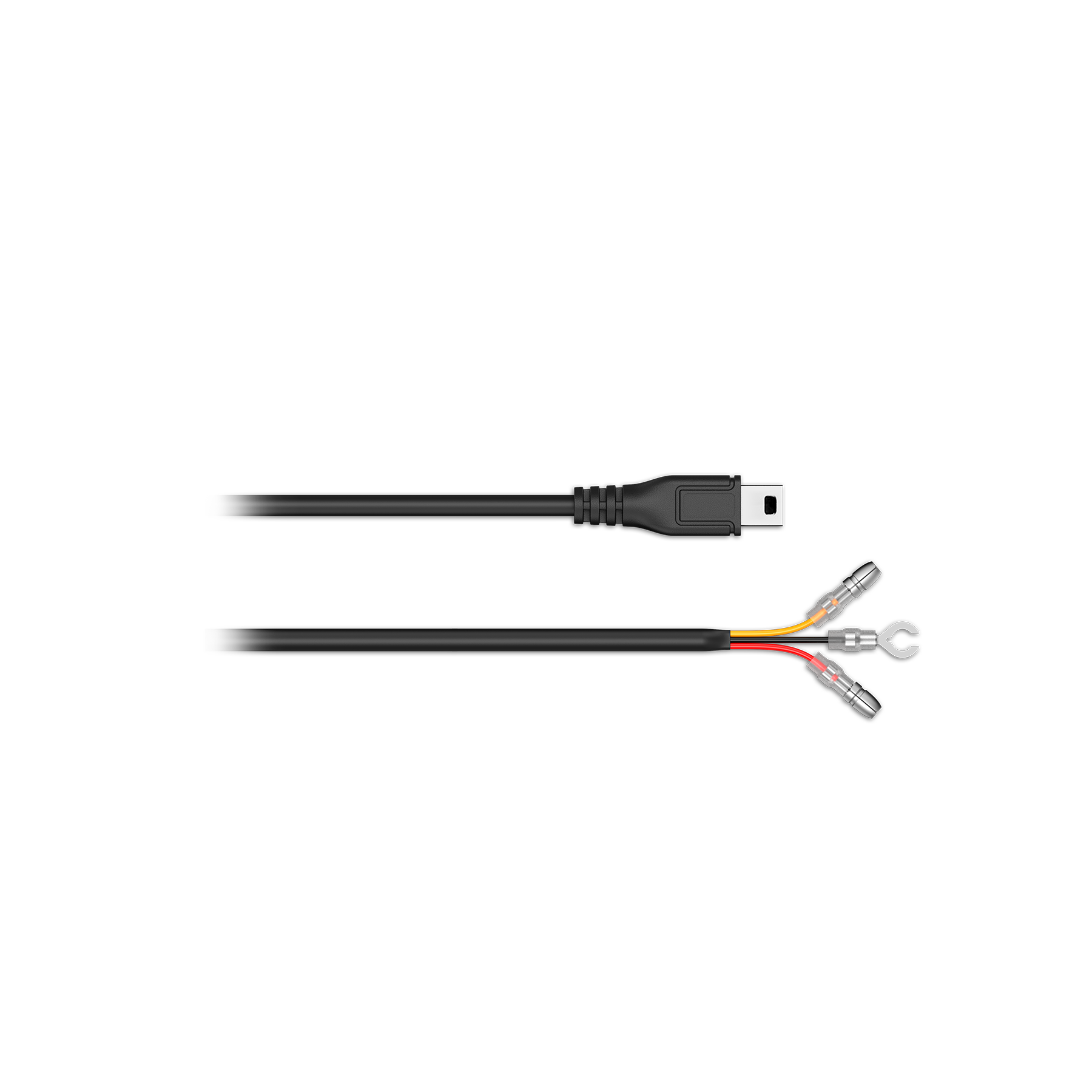

Input Cable
Three cables (Red: 12/24V Accessory, Yellow: 12/24V Power, Black: Ground), 2X22AWG, Conductor, SR-PVC Insulation, PVC Jacket, UL1015/2586, 1M, 150MM Clearance
Output Cable
Three cables, 2X22AWG Conductor; SR-PVC Insulation, PVC Jacket; UL/1007/2464, 3M
Output Connector
DC3.5X1.35 Mini USB Receptor

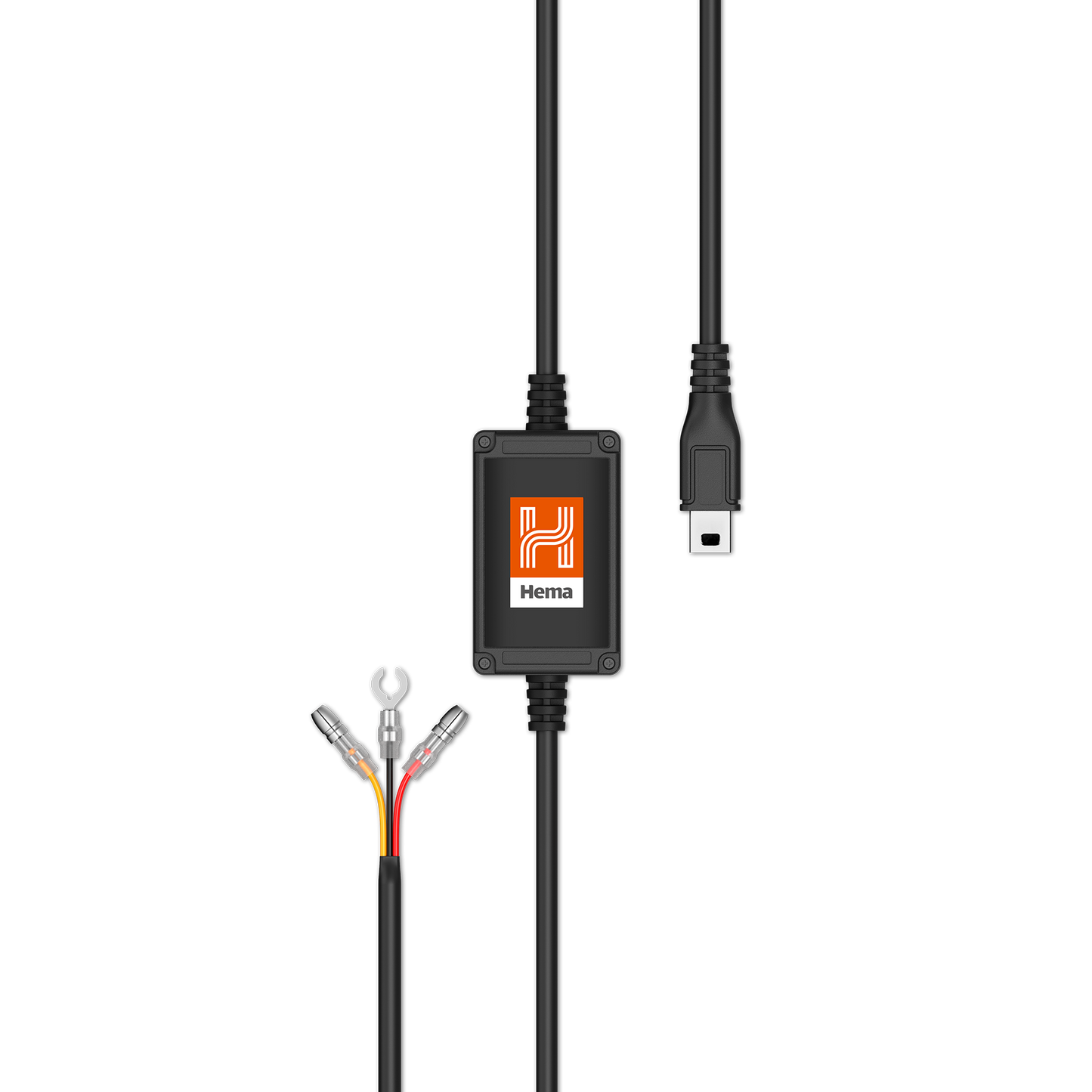

Flame Retardant ABS 94V0,Contains DC-DC
10V
Converter
32V
Input Voltage Min
NO LOAD: 5.1V,0.5A LOAD: 5.1V
Input Voltage Max
1A LOAD: 5.1V,2A LOAD: 5.1V
Output Voltage
DC5V 2.5A MAX
Output Power
11.8V/23.6V
Battery Drain Protection Bands
12.0V/24.0V,12.2V/24.4V,12.4V/24.8V
Other Protection
Reverse Polarity; Short Circuit; Over Temperature; Over Voltage; Over Load.
Working Temp
-20°C TO 65°C
ATS (STANDARD) FUSE CABLE
CABLE WITH 5A ATS (STANDARD) FUSE, L125MM
MINI FUSE CABLE
CABLE WITH 5A MINI FUSE, L125MM
MICRO2 FUSE CABLE
CABLE WITH 5A MICRO2 FUSE, L125MM
MICRO FUSE CABLE
CABLE WITH 5A MICRO FUSE, L125MM
CABLE TIES
QUICK FIX CABLE TIE, BLACK PA66, UL94V2, -20°C TO 105°C, 8KGs, W2.5MM L80MM
-
