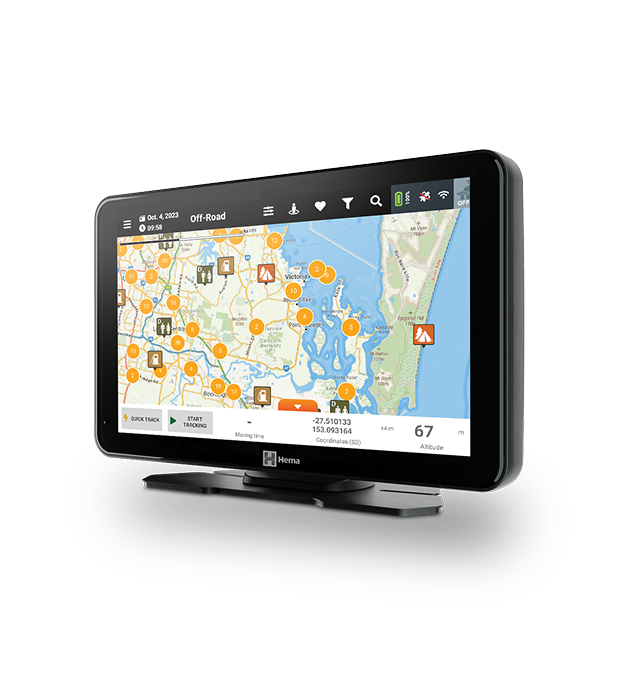

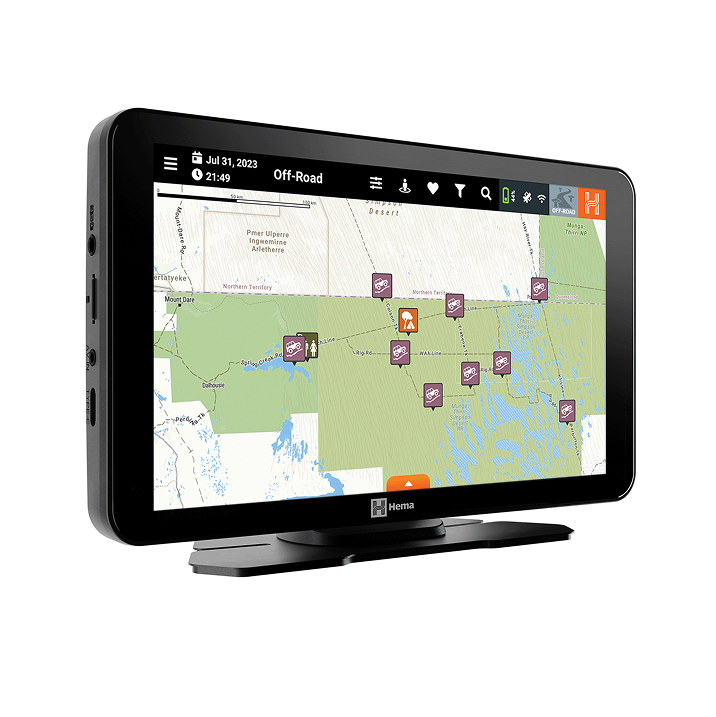

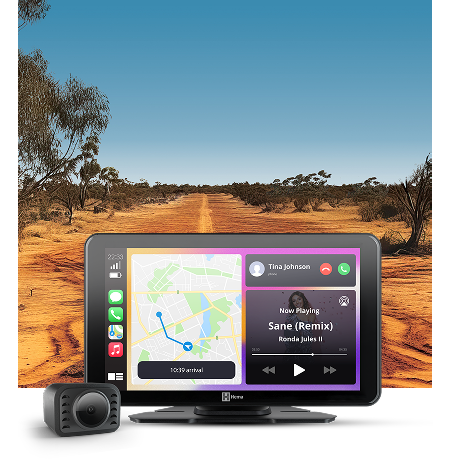

Hema 7” Smart Monitor with Dual-Channel DVR
-
Hema 7” Smart Monitor with Dual-Channel DVRHema 7” Smart Monitor with Dual-Channel DVR
-
Hema 7” Smart Monitor with Dual-Channel DVR
General
Processor
UIS8581A Octa-Core 4 x A55 1.6GHz + 4 x A55 1.2GHz
GPU
PowerVR Fentale GE8322 up to 550MHz
SDRAM
LPDDR4X: 4GB
SDROM
eMMC 64GB
Display type
Glass capacitive multi-touch IPS
Display Size
7.0 inch
Display Resolution
1024 x 600
Display brightness
400Nits
Battery
Polymer Li-ion Battery 200mAh (for RTC only)
Camera Features
Front Lens
Resolution
1080P
Aperture/Construction
F2.0/2G2P

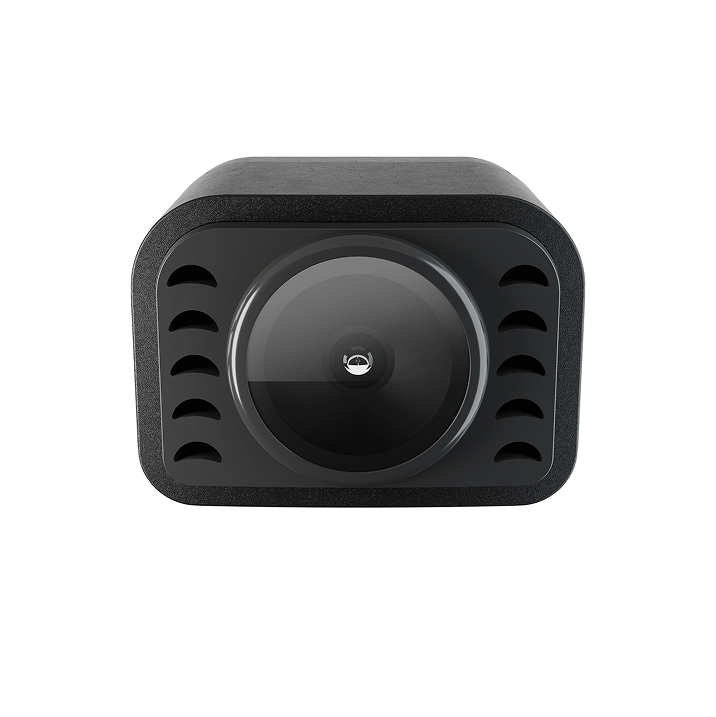

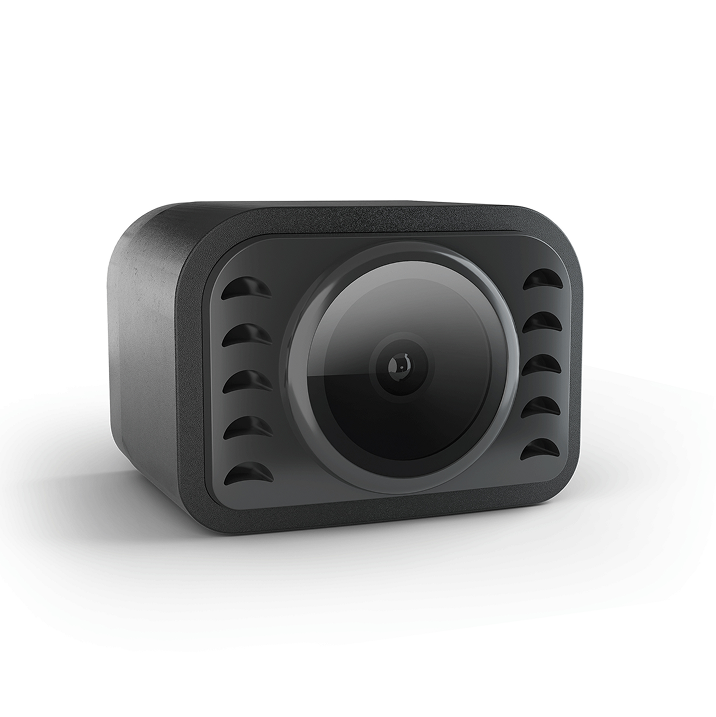

Rear Lens
Resolution/FPS
AHD 1080P
Aperture/Construction
F2.0/2G2P
Extension cable length
8.0 M
Other features
Switch to rear view image automatically while reversing, parking assistance line is adjustable
Loop Recording
Yes, 1min/3min/5min
Wireless Connections & Sensors
WiFi
Support carplay or Android Auto
Bluetooth
4.2
FM Transmitter
Yes
GPS
Yes, External GPS antenna
G-sensor
Yes
I/O Ports
Mic
Yes-Electret MIC-1.5*4MM, -34DB
Speaker
8ohm, 2W
Voice command
Via Siri/Google assistant
AUX socket
N/A
Rear camera connector
2.5mm socket
Micro SD card slot
Yes, up to 256GB

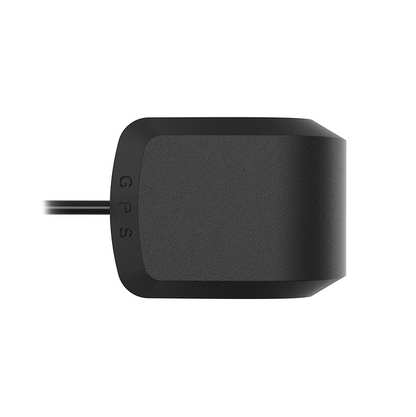

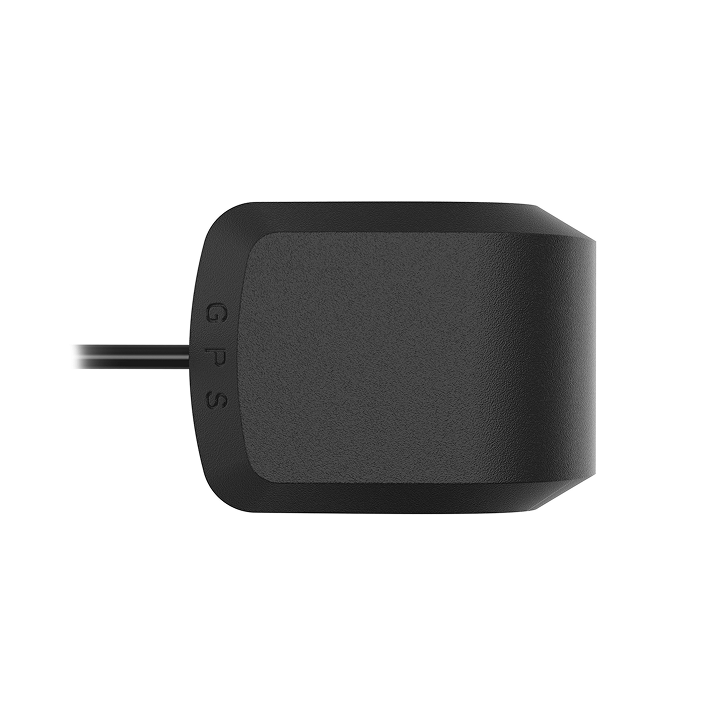

External GPS antenna connector
Yes, SMA
Power input
Type C
Physical buttons
Power, Reset
Power Consumption
Working voltage
DC5V
Working current
<2A
Quiescent current
<10MA
Power supply
Car charger or hardwire kit (optional)
Software and update
OS
Android 10
Firmware update
Through Micro SD card or OTA
Environment
Operating Temp
(-10°C - 70°C)
Storage Temp
(-20°C - 80°C)
Mechanical
Product dimensions
178.51 x 107.35 x 37.15
Product weight
323g
Install method

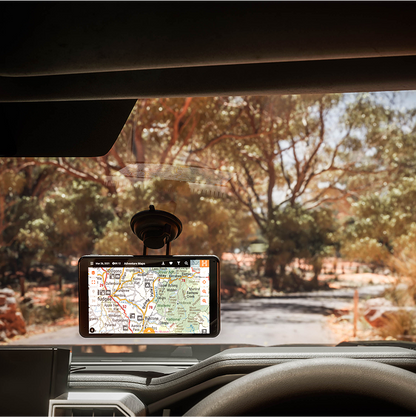

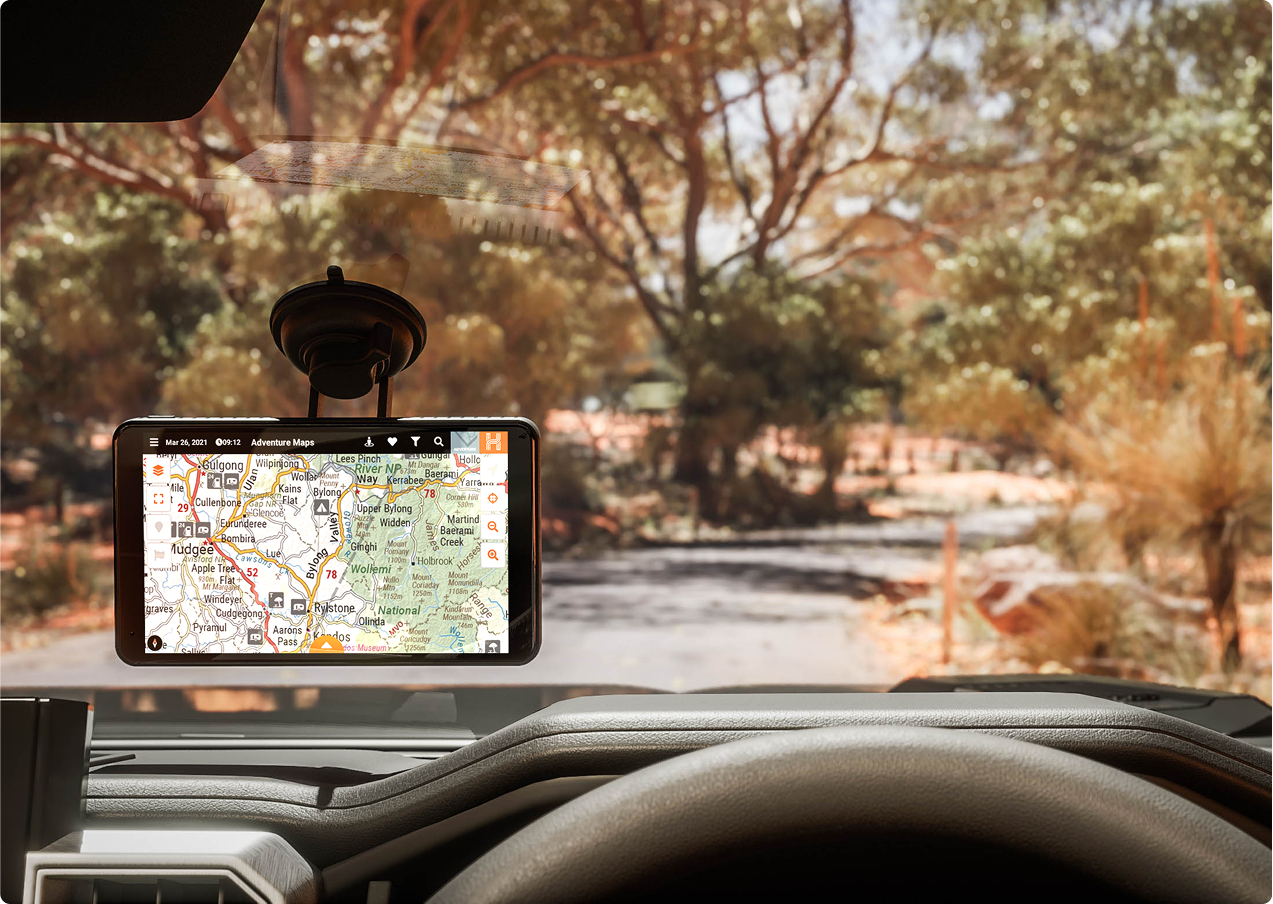

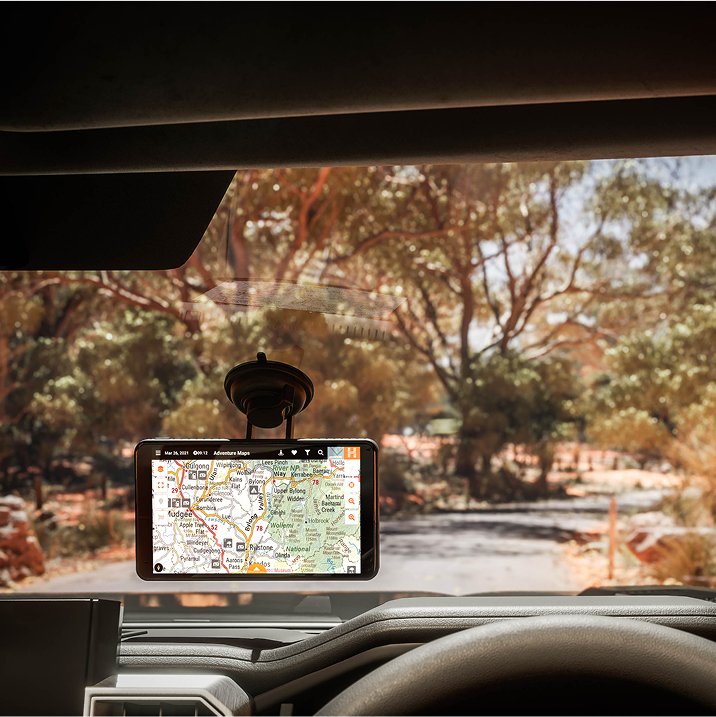

Magnetic mount, Suction cup mount, 3M adhesive dashboard mount
-
Included
HX-2+ GPS Navigator

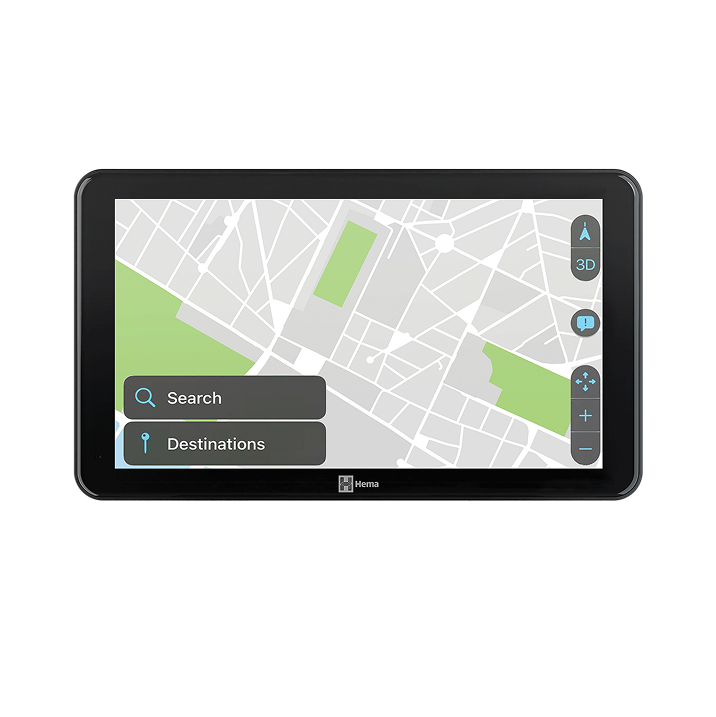

7.0” IPS LCD Display
Sharp graphics and effortless interaction come with the Full High-Definition LCD touch display.

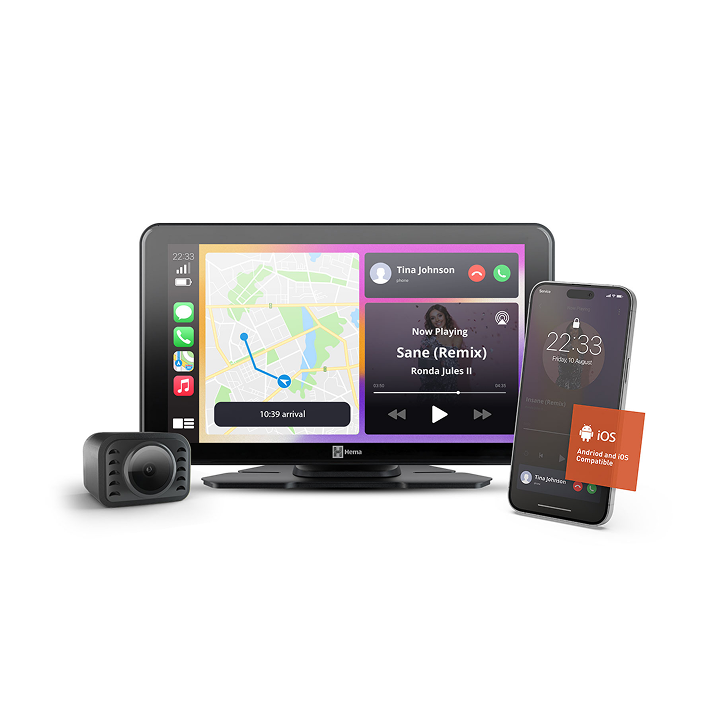

Front and Rear DVR
Capture your journey and any incidents with Full High-Definition front and rear cameras

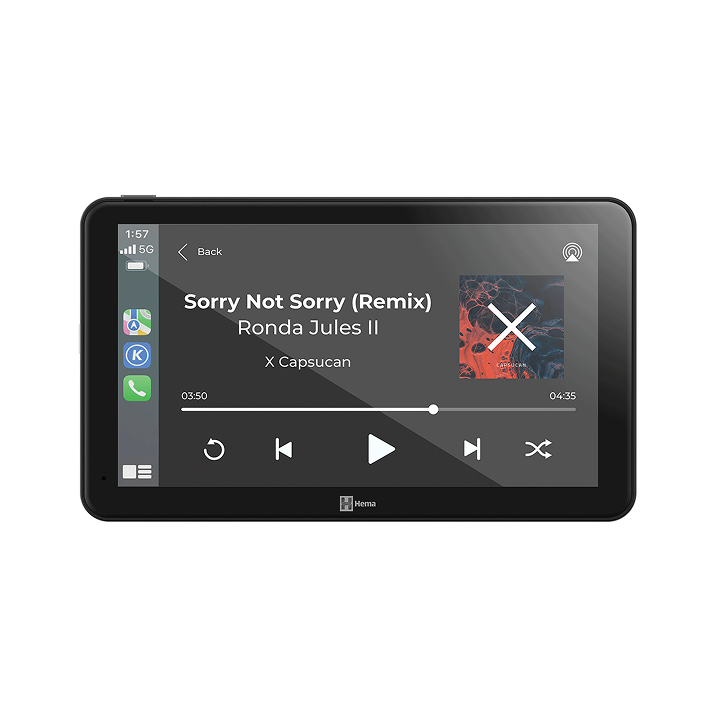

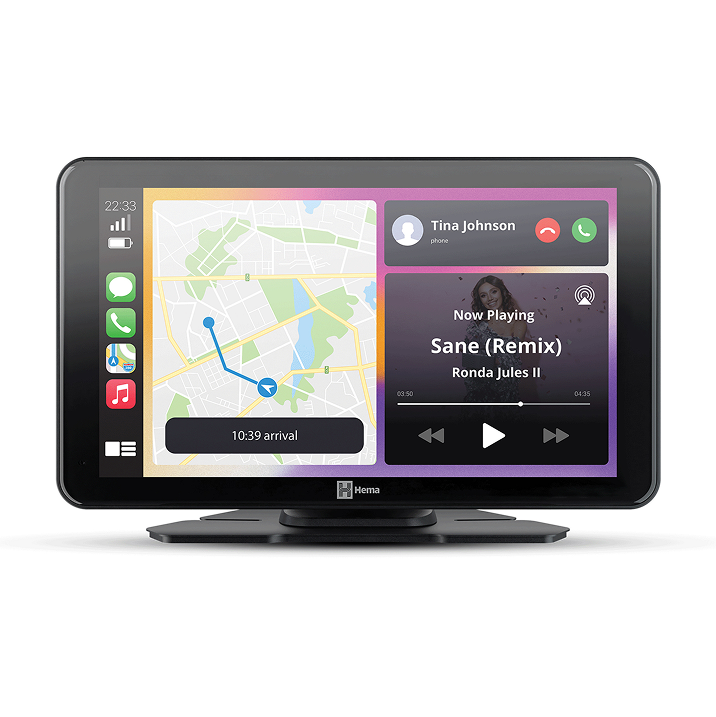

Supports Apple CarPlay and Android Auto
Wirelessly access your smartphone via the smart monitor – use apps, phone calls and more

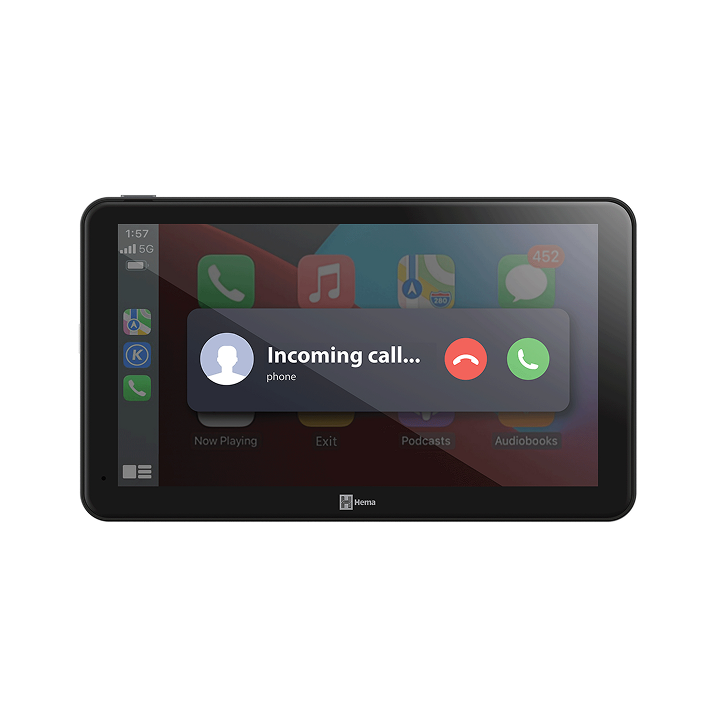

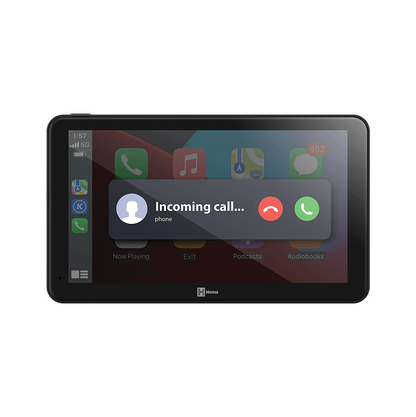

Hands-free calling
Enjoy legal, hands-free calls and messaging, keeping your eyes on the road and your hands on the wheel.
Touch Screen
Capacitive 1024 x 600 touchscreen for easy interaction and navigation with quick access to features and settings.

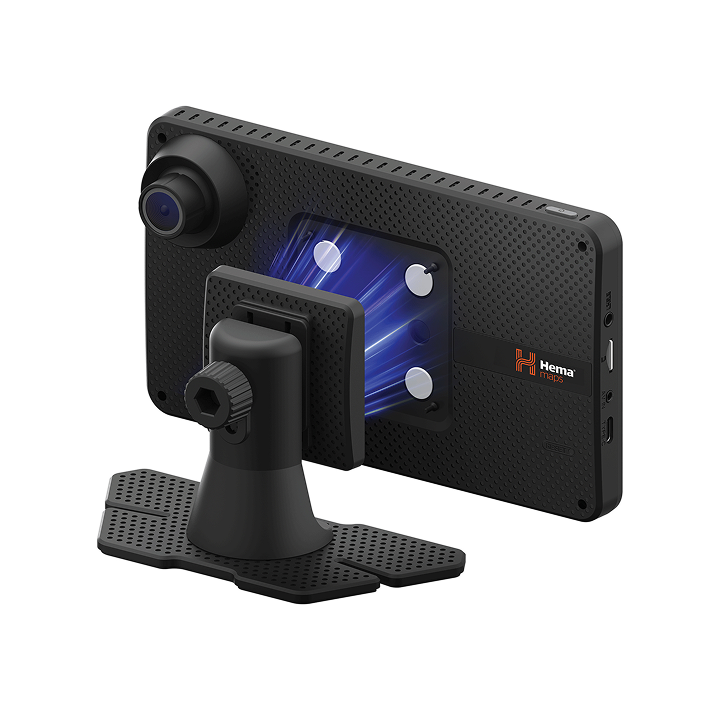

3M adhesive dashboard mount
Effortlessly mount to the dashof your vehicle.
